Live Pole Blanket, UBC Slopes Piping Failure

UBC Campus slopes, Vancouver · Brush mattress + wattle fencing

Piping is an internal erosion process in which water moving through the soil subsurface excavates tunnels or pipes through the soil mass, eventually causing surface collapse. Piping failures differ from surface-erosion failures in an important way: the instability originates below ground, driven by subsurface water movement. Surface revegetation alone is insufficient, the water management problem must be addressed.

The UBC slope failure presented:

Brush mattress was applied as the initial structural and hydrological treatment. A brush mattress consists of layered branches of living dormant willow and cottonwood material woven or laid flat across the slope surface and covered with a thin layer of soil. The technique achieves several objectives simultaneously: it provides immediate surface protection against rainfall impact and further erosion; the moisture available in the saturated slope environment actively supports establishment of the layered cuttings; and once rooted, the dense subsurface root mass created by the brush mattress begins to intercept and use the seepage moisture that was driving the piping.

Wattle fences were installed across the slope to re-establish micro-terracing, creating a series of small horizontal berms that interrupt slope runoff, accumulate fine sediment and organic matter, and provide structural support for the brush mattress installation above.

The combination of moisture-intercepting brush mattress material and structural wattle terracing is well suited to piping-failure terrain where seepage is both the problem and, strategically deployed, part of the solution.

The ample moisture available at the piping failure site produced excellent growth in the installed brush mattress material. This is consistent with the general principle that moist, seepage-affected slopes, which are often the most difficult to treat with conventional dry revegetation methods, respond particularly well to soil bioengineering techniques that use living plant material able to exploit available moisture.

The wattle fence structure re-established slope form while vegetation establishment proceeded, and the brush mattress drained and managed slope moisture as the installed willows and cottonwoods rooted and began transpiring.

The UBC slopes project illustrates a key advantage of soil bioengineering on seepage-affected terrain: living plant materials actively manage the water that is driving instability, rather than simply sitting on top of a continuing problem.

Soil bioengineering for piping and seepage failures, addressing water where it causes the problem. Request a Site Assessment →

At UBC, treatment addressed seepage and slope form together. Wattle fences rebuilt small terraces, and brush material covered the wet slope surface to support vegetation establishment.

The problem was not just bare soil. Piping is internal erosion: subsurface water carries soil away until the slope collapses from within. A surface-only treatment would have left the cause of failure in place.

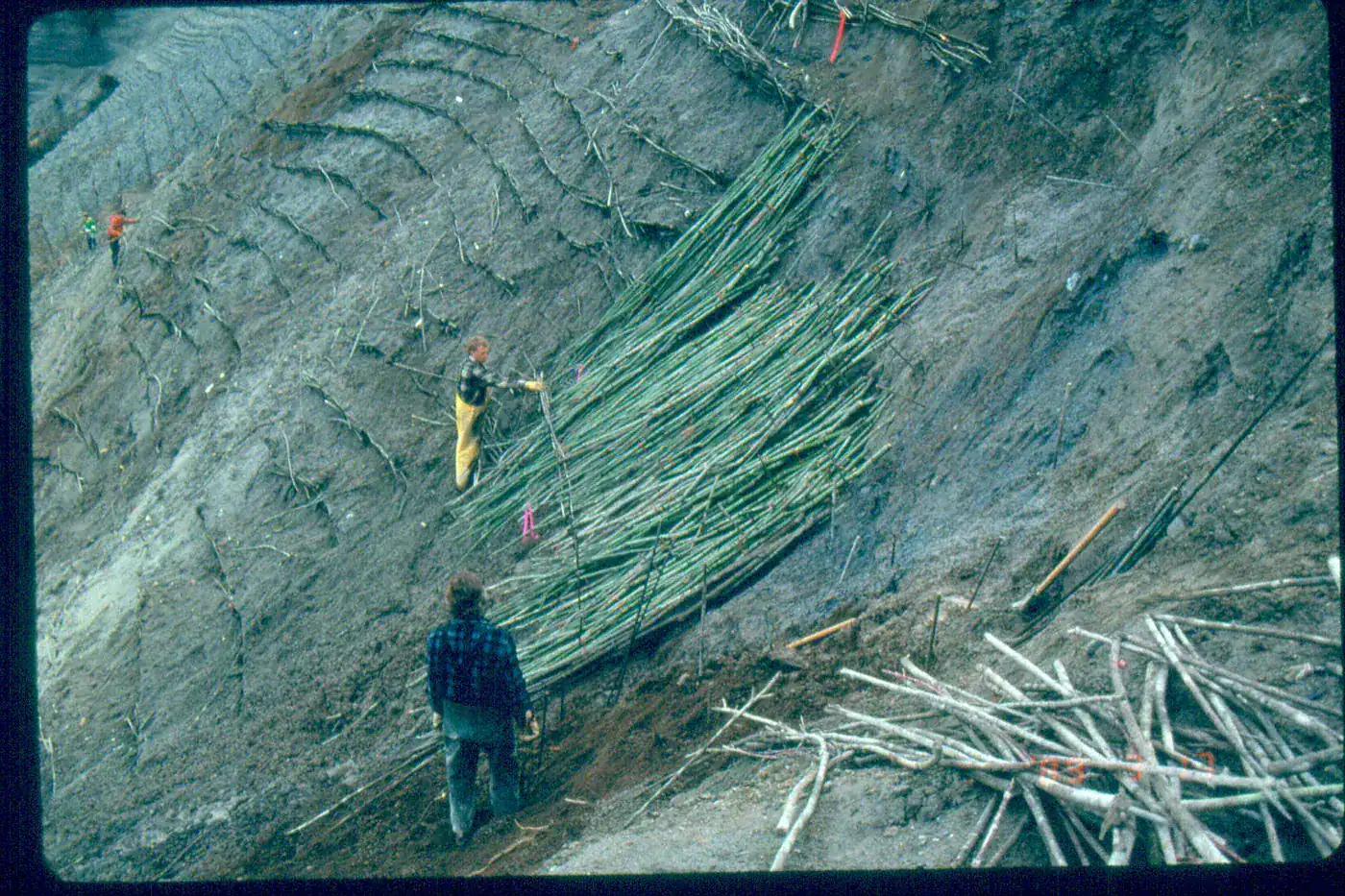

The brush mattress placed living cuttings across the wet failure surface.

The wattles break the slope into small benches. That reduces runoff energy, catches fine material, and gives the brush mattress a supported surface to root into instead of sliding off the face.

The brush mattress drained and used the moisture coming through the slope.

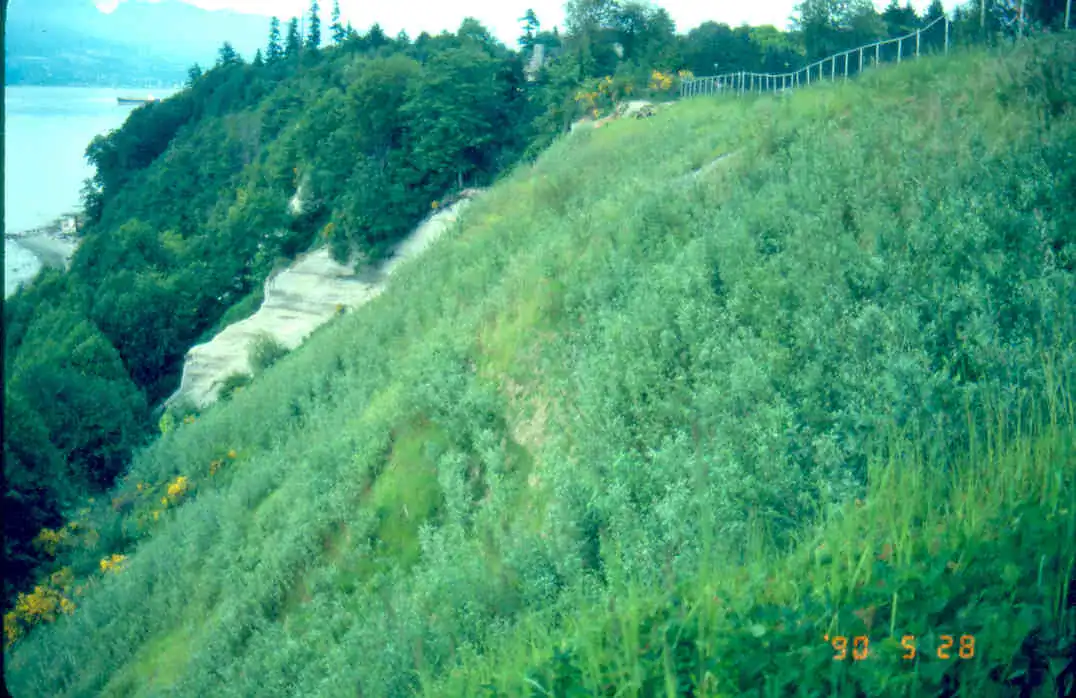

The photographs show strong above-ground growth on the treated slope. This is a visible establishment response to the moisture available at the site.

• Source deck: David Polster, Live Pole Blanket - UBC Slopes Piping Failure field sequence.
• Wattle Fencing
• Modified Brush Layers
• Live Pole Drains

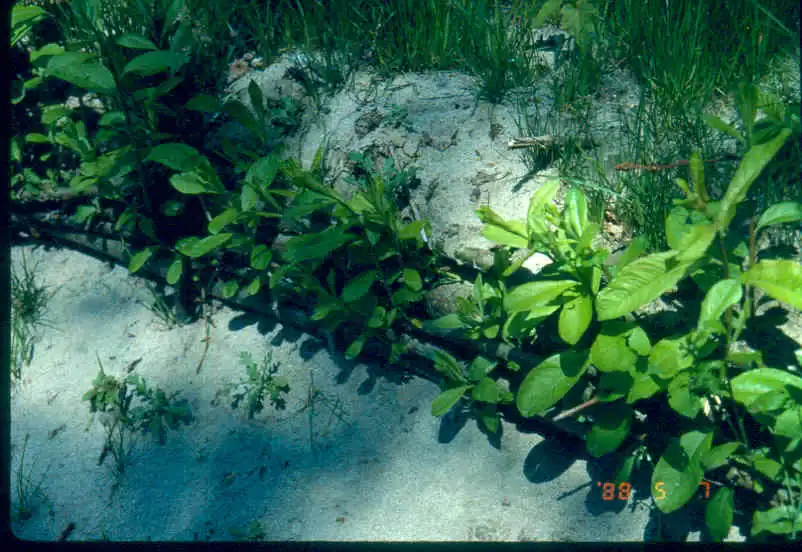

Early growth on the treated UBC slope. The source presentation describes brush-mattress drainage and wattle-fence reconstruction as part of the response to the piping failure.

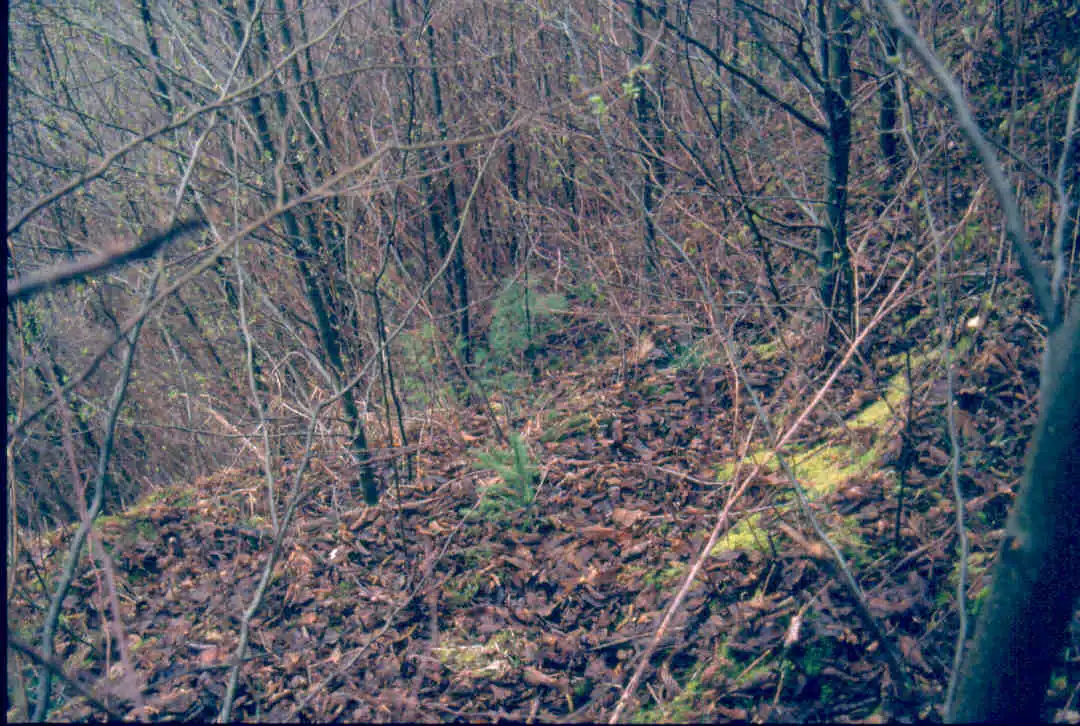

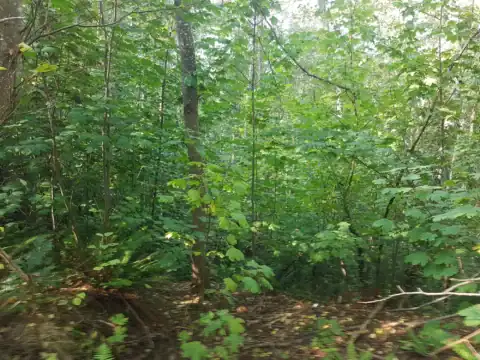

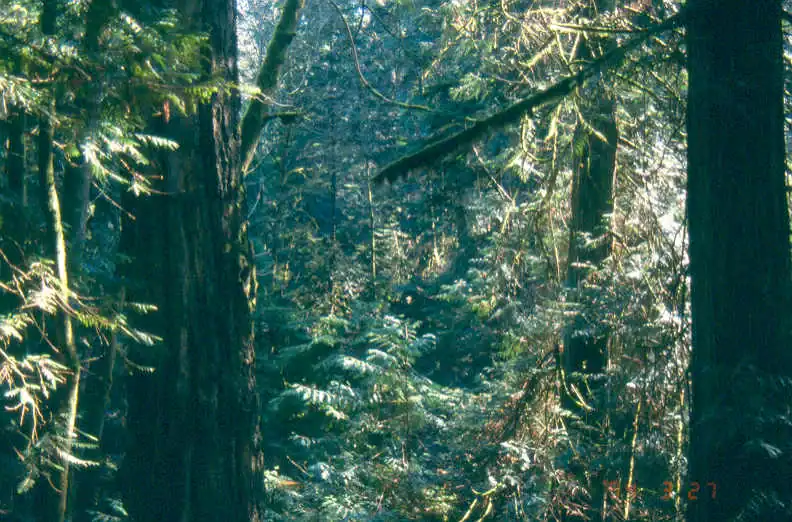

Later woody cover on the treated UBC slope extends the photographic record of vegetation establishment.
