Riparian Restoration in the Field

Dated Bowker Creek photographs show streambank treatment and subsequent vegetation. A separate Vantreight video demonstrates wattle-fence installation on a steep slope.

Bowker Creek Photographs

Dated photographs document wattle-fence treatment and later vegetation along the Bowker Creek channel.

Separate Slope Demonstration

The Vantreight video shows workers installing wattle fences on a steep slope. It is not footage of the Bowker Creek streambank.

Follow-up Observations

Repeat photographs show vegetation changes. Site inspections are needed to assess bank movement, scour, sediment and habitat conditions.

Separate slope example: Vantreight

This video shows wattle-fence installation on a steep slope. It is a separate example from the Bowker Creek streambank photographs below.

Riparian Bioengineering in Practice: Bowker Creek

The Bowker Creek at McRae sequence records wattle-fence construction in spring and fall 2004, followed by photographs in March and April 2005 and May 2007. Later views show dense vegetation along the treated streambank.

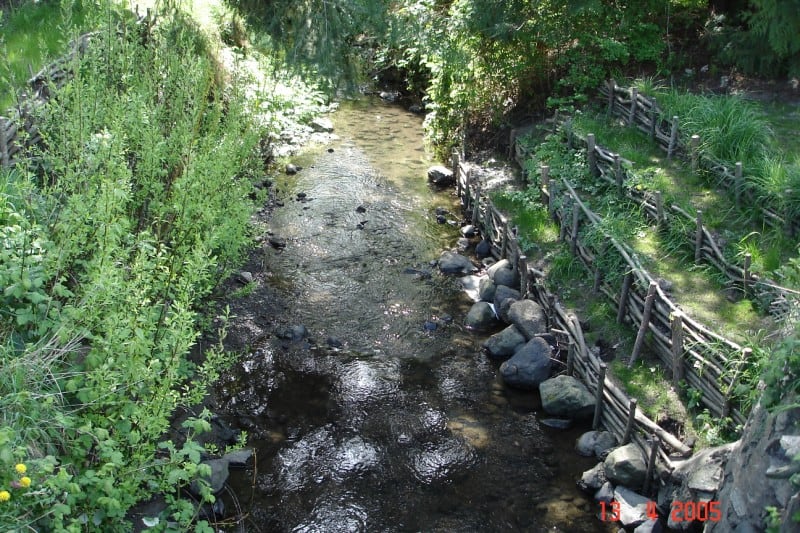

Stream channel with wattle fences and vegetation establishment after bioengineering

Bowker Creek at McRae, April 2005, wattle fence installation in urban stream channel

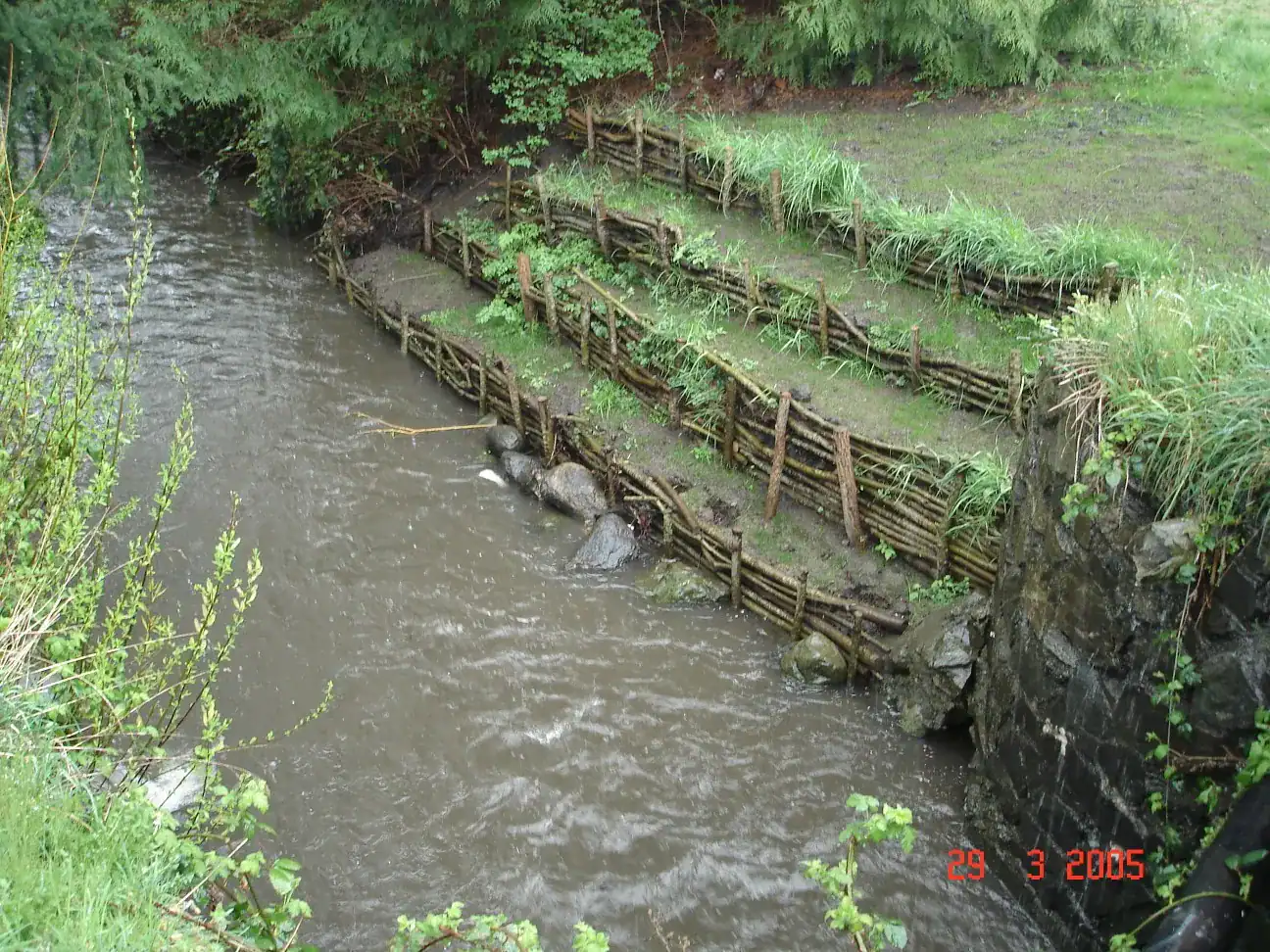

Wattle fence terracing on streambank, Highway bioengineering project BC, 2005

Bowker Creek March 2005, flow fluctuations in small urban stream before bioengineering established

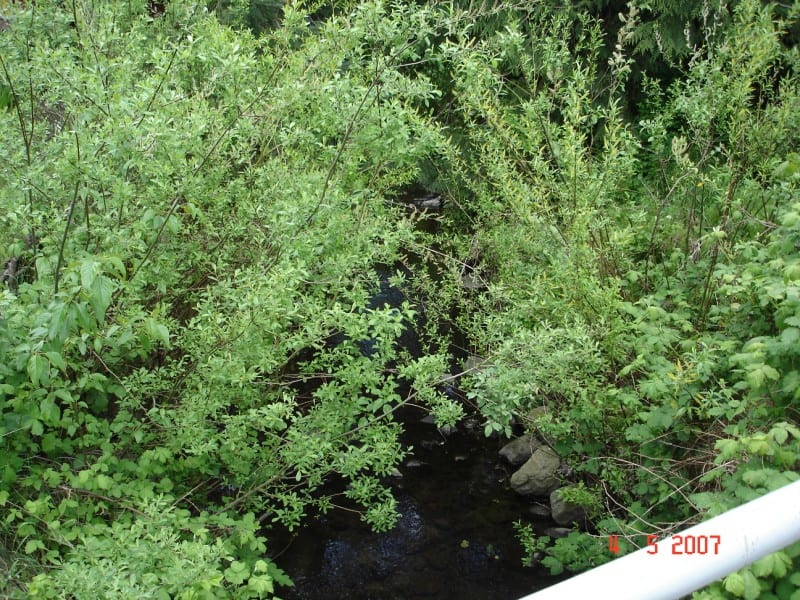

Bowker Creek bioengineering fully established May 2007, dense native vegetation from wattle fences

Bowker Creek May 2007, dense native vegetation fully established from wattle fence bioengineering

Use the dated field record below to follow vegetation and channel changes at each site.

Follow the treatment through repeat photographs, plant-survival checks and inspections after high water. Record bank movement, scour, sediment and damage, then adjust maintenance to the observed conditions.

The Bowker Creek photographs document streambank treatment. The separate Vantreight footage records wattle-fence installation on a slope.

What This Field Example Shows

The riparian examples reinforce a simple idea: damaged streambanks usually need more than a hard edge. They need living structure returned to the bank.

  • woody root systems that hold the bank

  • roughness that slows erosion along the edge

  • vegetation that shades the water and rebuilds riparian function

  • early pioneer species that restart succession along the disturbed margin

Why This Matters

The Bowker Creek photographs provide a dated streambank example. The Vantreight video explains a slope-construction process; it does not establish riparian recovery or a measured long-term outcome.

Methods Commonly Involved

The legacy riparian work connects closely to:

What to Look For in the Field

When these systems are working, the evidence is visible:

  • increasing woody cover along the bank

  • sediment being held rather than continually stripped away

  • a maturing riparian edge rather than a bare treatment line

  • the site moving toward a self-sustaining native plant corridor

Supporting Material

For the fuller technical explanation behind these examples, use:

Takeaway

PES uses field examples to explain how treatments are built and what to monitor as vegetation establishes.
